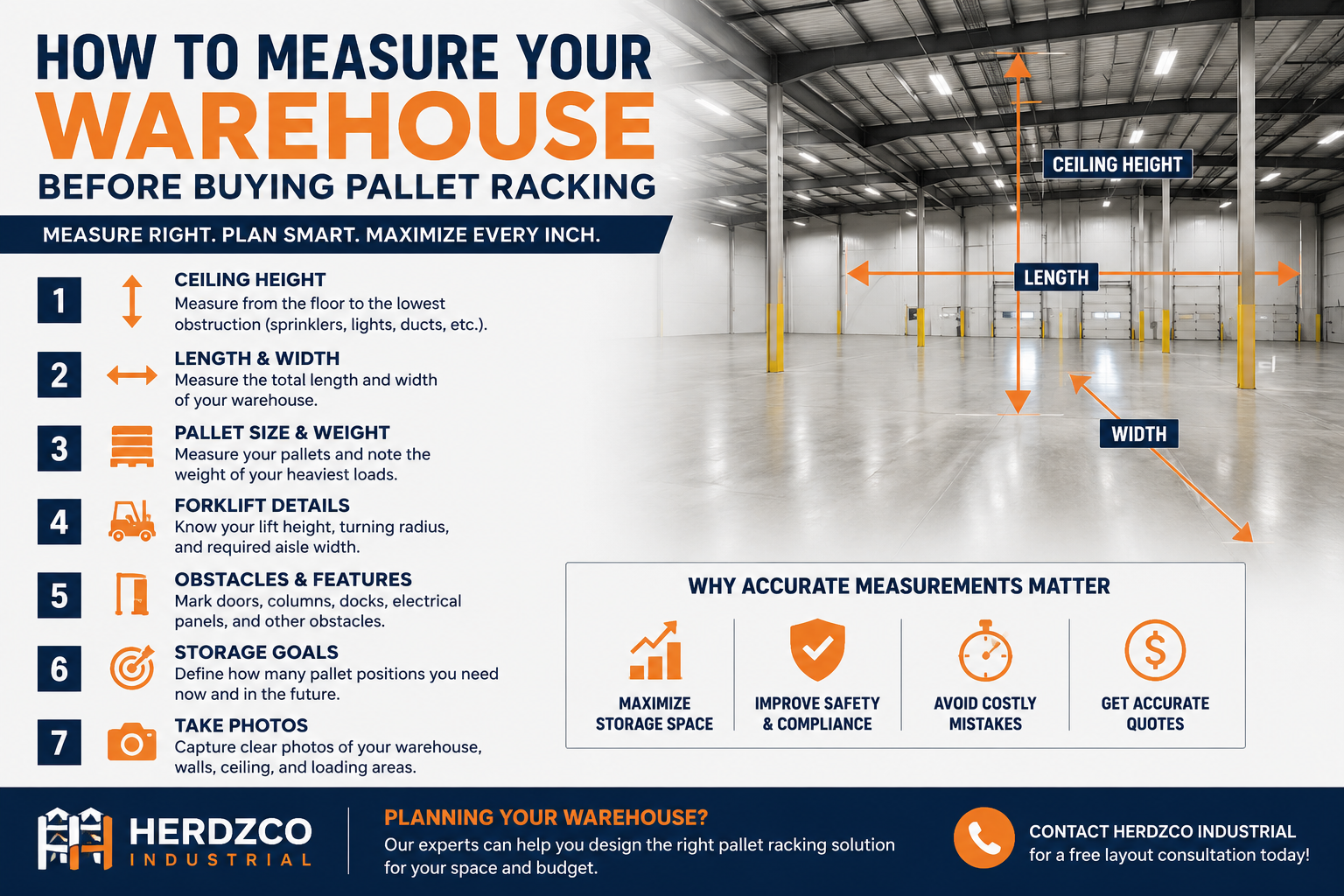

How to Measure Your Warehouse Before Buying Pallet Racking: A Step-by-Step Guide

If you're planning to purchase pallet racking for your warehouse, taking accurate measurements is one of the most important steps in the process. Even a few incorrect measurements can lead to a storage system that doesn't fit properly, limits your warehouse's efficiency, or requires costly changes after installation.

Whether you're opening a new facility, expanding your current warehouse, or replacing an existing storage system, knowing exactly what to measure will save time, money, and frustration.

In this guide, we'll walk you through everything you need to measure before buying pallet racking so you can make informed decisions and maximize every square foot of your warehouse.

Why Accurate Warehouse Measurements Matter

Many business owners focus only on the amount of floor space they have available. While floor space is important, your warehouse's vertical space, aisle widths, equipment, and building layout all play a major role in designing the right storage system.

Accurate measurements help you:

• Maximize storage capacity
• Improve forklift traffic flow
• Increase workplace safety
• Reduce installation issues
• Receive more accurate quotes
• Plan for future business growth

Spending a little extra time measuring today can prevent expensive mistakes tomorrow.

Step 1: Measure Your Ceiling Height

Your building's overall height isn't always the height available for storage.

Measure from the floor to the lowest overhead obstruction, such as:

• Fire sprinkler lines
• Light fixtures
• HVAC ductwork
• Ceiling beams
• Garage door tracks
• Electrical conduit

These obstacles determine the maximum height your pallet racking can safely reach.

Pro Tip: Always leave the proper clearance below fire sprinklers according to your local fire code.

Step 2: Measure the Length and Width of Your Warehouse

Next, determine the overall dimensions of your warehouse.

These measurements help determine:

• How many rows of pallet racking can fit
• The number of storage bays
• Receiving and shipping areas
• Forklift travel paths
• Future expansion opportunities

Don't forget to note any irregular wall angles or areas that cannot be used for storage.

Step 3: Measure Your Pallets

Not all pallets are the same.

Before selecting pallet racking, record:

• Pallet length
• Pallet width
• Loaded height
• Total weight
• Product overhang (if any)

The most common pallet size in North America is 48" x 40", but many industries use custom pallet sizes that require different rack depths or beam lengths.

If your inventory changes throughout the year, measure your largest typical load rather than your smallest.

Step 4: Identify Your Forklift

Your forklift determines much more than people realize.

Different forklifts require different aisle widths and lifting clearances.

Record:

• Forklift type
• Maximum lift height
• Turning radius
• Required aisle width
• Load capacity

For example, a standard sit-down forklift typically requires wider aisles than a reach truck.

Choosing the wrong aisle width can reduce storage capacity or make your warehouse difficult to operate.

Step 5: Locate Doors, Columns, and Other Obstacles

Every warehouse has permanent features that must be incorporated into the layout.

Mark the location of:

• Loading docks
• Overhead doors
• Personnel doors
• Support columns
• Fire exits
• Electrical panels
• Utility lines
• Floor drains
• Office walls
• Emergency equipment

These features affect where pallet racking can safely be installed.

Step 6: Determine Your Storage Goals

Before purchasing pallet racking, ask yourself a few important questions.

• How many pallet positions do I need today?
• How much inventory growth do I expect over the next five years?
• Will I be storing heavier products in the future?
• Do I need quick access to every pallet?
• Will this warehouse support manufacturing, shipping, or both?

The answers help determine the best rack configuration for your operation.

Step 7: Take Photos of Your Warehouse

Photos often reveal details that measurements alone cannot.

Take clear pictures of:

• Each warehouse wall
• The ceiling
• Loading docks
• Existing storage
• Forklift traffic areas
• Building columns
• Electrical equipment
• Obstructions

If possible, include one wide-angle photo showing the entire warehouse.

These photos help storage specialists recommend the most efficient layout.

Common Mistakes to Avoid

Many warehouse owners unintentionally make the same mistakes before purchasing pallet racking.

Avoid these common issues:

• Measuring only floor space and ignoring ceiling height
• Forgetting about sprinkler clearance requirements
• Not accounting for forklift aisle widths
• Ordering pallet racking before measuring pallets
• Ignoring future inventory growth
• Forgetting to measure around building columns and dock doors

Planning ahead helps prevent costly changes after installation.

Why Professional Warehouse Planning Matters

Every warehouse is different.

The right storage system depends on your building, inventory, equipment, and long-term goals.

A professionally designed layout can often increase storage capacity without requiring additional warehouse space. By optimizing rack placement, aisle widths, and vertical storage, businesses can improve efficiency while keeping operations safe and organized.
