How Many Pallets Fit on a 12 Foot Pallet Rack Beam?

If you are planning a pallet racking layout, one of the first things you will probably want to know is how many pallets can fit on each beam level.

In most cases, a 12 foot pallet rack beam can hold three standard pallets side by side. However, that answer can change depending on the actual size of your loaded pallets, which direction they face, and how much clearance your forklift operator needs.

Here is what you should check before choosing 12 foot beams for your warehouse.

What Is a Standard Pallet Size?

The most common pallet size in the United States is approximately 48 inches deep by 40 inches wide.

When the pallet is placed on selective pallet racking, the 40 inch side usually faces the aisle and runs along the beams. The 48 inch side extends into the rack.

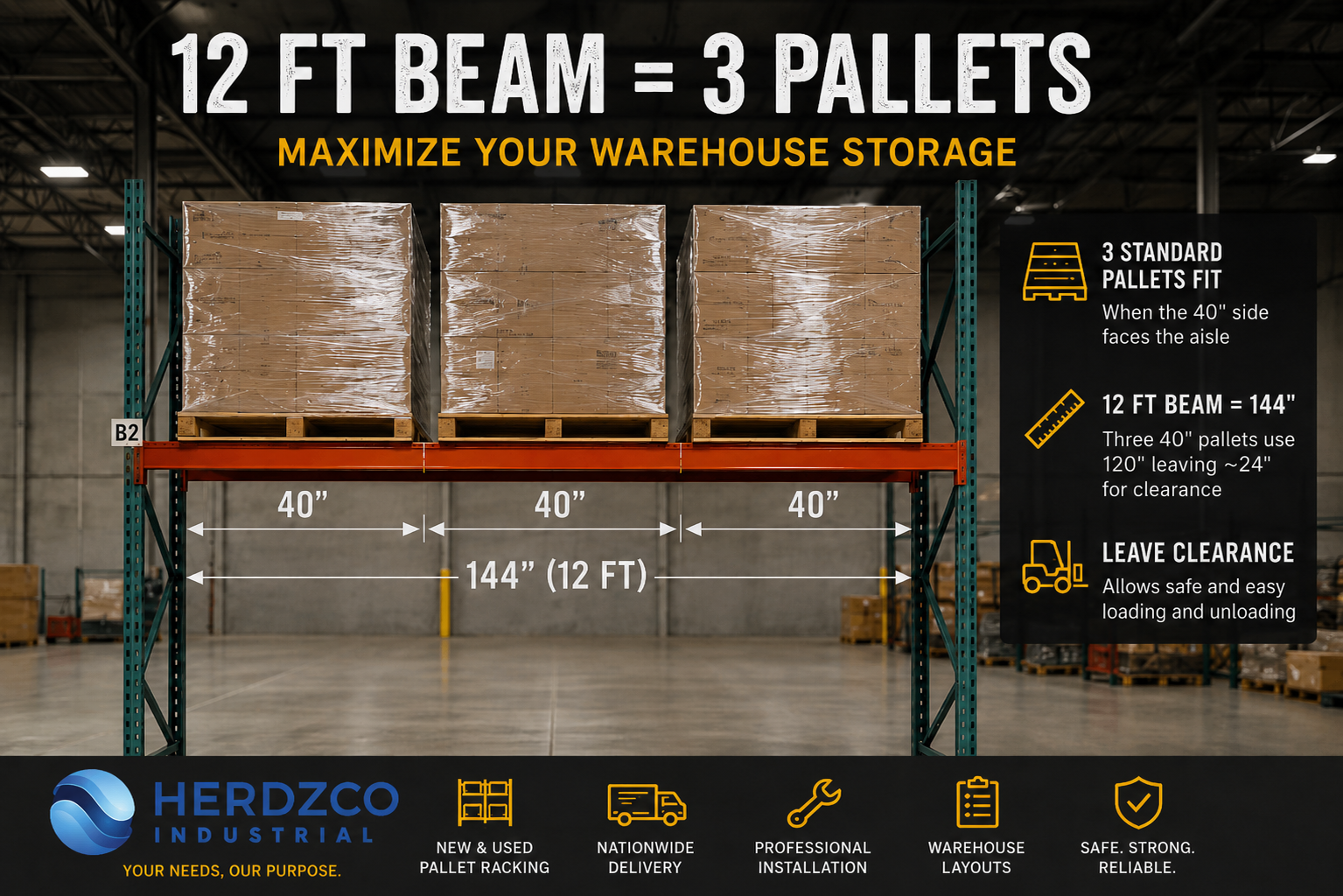

Three pallets that are each 40 inches wide take up a total of 120 inches. Since a 12 foot beam is 144 inches long, that leaves approximately 24 inches of extra space around and between the pallets.

That extra room makes it easier for forklift operators to place and remove each pallet without hitting the uprights or the loads next to it.

Can Three Pallets Fit on a 12 Foot Beam?

For standard pallets, the answer is usually yes.

Here is the basic calculation:

Three 40 inch wide pallets use 120 inches.

A 12 foot beam provides 144 inches of space.

That leaves approximately 24 inches for clearance.

This is why 12 foot beams are commonly used when a warehouse wants three pallet positions on each level.

However, it is still important to measure the inventory you actually store. A setup that works for standard pallets may not work for oversized products or loads that extend past the pallet edges.

Pallet Direction Makes a Difference

A standard pallet has a 40 inch side and a 48 inch side, so the direction it faces matters.

When the 40 inch side faces the aisle, three pallets can usually fit comfortably across a 12 foot beam.

When the 48 inch side faces the aisle, three pallets would take up the entire 144 inches. That would leave no space between the pallets or next to the upright frames, making the rack difficult to load and use safely.

Before choosing your beam length, measure the side of the loaded pallet that will face the aisle.

Measure the Entire Load

One mistake we see often is measuring only the wooden pallet underneath the product.

The pallet may be 40 inches wide, but boxes, bags, equipment, or shrink wrapped materials can extend past the edges. Even a few extra inches on each load can make a big difference when you are trying to place three pallets on one level.

For example, three loaded pallets that are each 44 inches wide would use 132 inches. They may still fit, but the forklift operator would have much less room to work with.

Always measure the widest part of the complete load, not just the pallet itself.

Leave Enough Working Room

Pallets should not be packed tightly against one another or placed directly against the upright frames.

Forklift operators need enough room to position each load without damaging the rack, the inventory, or the neighboring pallets.

The right amount of clearance can depend on the pallet size, forklift, operator visibility, and the type of product being stored.

A layout may technically fit on paper but still be frustrating to use every day. Leaving enough working room can make loading and unloading much easier.

Make Sure the Beams Can Handle the Weight

Just because three pallets fit on a beam level does not mean the beams can safely hold their combined weight.

Every beam pair has a specific capacity. That capacity can change based on the beam length, height, steel thickness, manufacturer, and connection style.

For example, if each pallet weighs 2,000 pounds, the beam level would need to support at least 6,000 pounds of properly distributed weight.

The upright frames also need to support the combined weight of every level in the rack bay.

Never estimate capacity based only on how heavy duty a beam looks. Two beams that appear almost identical may have different ratings.

Keep the Weight Evenly Distributed

Beam capacities are generally based on evenly distributed loads.

When three pallets are stored on one level, their weight should be spread across the beams as evenly as possible.

If one pallet is much heavier than the others, or if all the weight is concentrated in one part of the beam level, the rack may be loaded differently than intended.

When planning your system, use the weight of your heaviest pallets instead of relying only on an average.

Does Wire Decking Change the Number of Pallets?

Wire decking creates a surface between the front and rear beams. It can provide extra support for certain loads and help prevent loose items from falling through the rack.

However, wire decking does not create more space or automatically increase the beam capacity.

The decking still needs to fit the rack correctly and have the proper capacity for the products being stored. A 12 foot rack bay will normally use several wire deck panels across each level rather than one large panel.

Are 12 Foot Beams Right for Every Warehouse?

Twelve foot beams can be a great option when you want to store three standard pallets per level, but they are not the right choice for every warehouse.

Before deciding, consider:

The size and weight of your loaded pallets

The number of pallets you need to store

The available ceiling height

The location of walls and building columns

Your forklift size and lifting height

The beam and upright capacities

The aisle space your equipment needs

In some buildings, shorter beams may fit around columns or tight areas more easily. Other warehouses may benefit from longer bays with three pallet positions per level.

The best choice depends on your inventory, equipment, and available space.

How Many Pallet Positions Can One Bay Provide?

If one 12 foot beam level holds three pallets, the total number of pallet positions will depend on how many levels you install.

Two elevated levels can provide six pallet positions.

Three elevated levels can provide nine pallet positions.

When floor storage is included underneath the lowest beam level, the same bay may provide three additional positions.

That means one bay could potentially hold twelve pallets with three elevated levels and floor storage.

Before adding more levels, make sure the upright capacity, ceiling height, sprinkler clearance, pallet height, and forklift reach have all been reviewed.

What Should You Know Before Requesting a Quote?

Before contacting a pallet racking supplier, it helps to have the following information ready:

Your loaded pallet width, depth, and height

The weight of your heaviest pallet

The number of pallets you need to store

The number of beam levels you want

Your warehouse ceiling height

Your forklift’s maximum lifting height

Your preferred aisle width

Photos and measurements of the warehouse

The more accurate the information is, the easier it will be to recommend the right beam length, upright depth, rack height, and capacity.

The Bottom Line

A 12 foot pallet rack beam will usually hold three standard pallets when the 40 inch side of each pallet faces the aisle.

Still, every warehouse and every load is a little different. Product overhang, pallet direction, clearance, weight, and rack capacity should all be checked before ordering your materials.

Taking a few measurements ahead of time can help you avoid purchasing beams that do not work for your inventory or daily operation.
