PwnCNC 4th Axis Rotary System for MASSO CNC – 100mm 4-Jaw Chuck
PwnCNC 4th Axis Rotary System for MASSO CNC
Add rotary carving, indexing, and cylindrical machining capability to a compatible PwnCNC or MASSO-controlled CNC.
This preassembled fourth-axis rotary system combines a 100mm four-jaw chuck, matching tailstock, and PwnCNC closed-loop 2Nm stepper motor. It is designed for plug-and-play use with supported PwnCNC machines and conversion kits, while other MASSO Touch installations may require additional power and inlet hardware.
Best For
- Rotary engraving and carving
- Table legs, handles, columns, and cylindrical stock
- Indexed machining on multiple faces
- Custom round parts, signs, and decorative work
Headstock Specifications
- Chuck: K12 100mm four-jaw chuck
- Through-hole diameter: 22mm
- Drive: 6:1 belt reduction
- Rotation resolution: 0.3 degrees per step
- Includes anti-jaw set and chuck tools
Tailstock Specifications
- Taper: MT2
- Total height: 115mm
- Center height: 65mm
- Travel: 50mm
- Includes standard tailstock center
Optional pointed, convex, and ER11 tailstock heads are sold separately.
Closed-Loop Stepper Motor
- Holding torque: 2Nm
- Input voltage: 20–50V DC
- Recommended operating voltage: 36V DC
- Output shaft: 8mm
- Maximum pulse rate: 200kHz
Compatibility
- PwnCNC Dominator Pro, Dominator Core, and supported PwnCNC MASSO conversion systems: Designed for plug-and-play connection.
- Other MASSO Touch CNC machines: May require a compatible stepper inlet cable, power adapter, and external power supply.
Confirm available mounting space, center height, controller I/O, power requirements, and machine configuration before ordering.

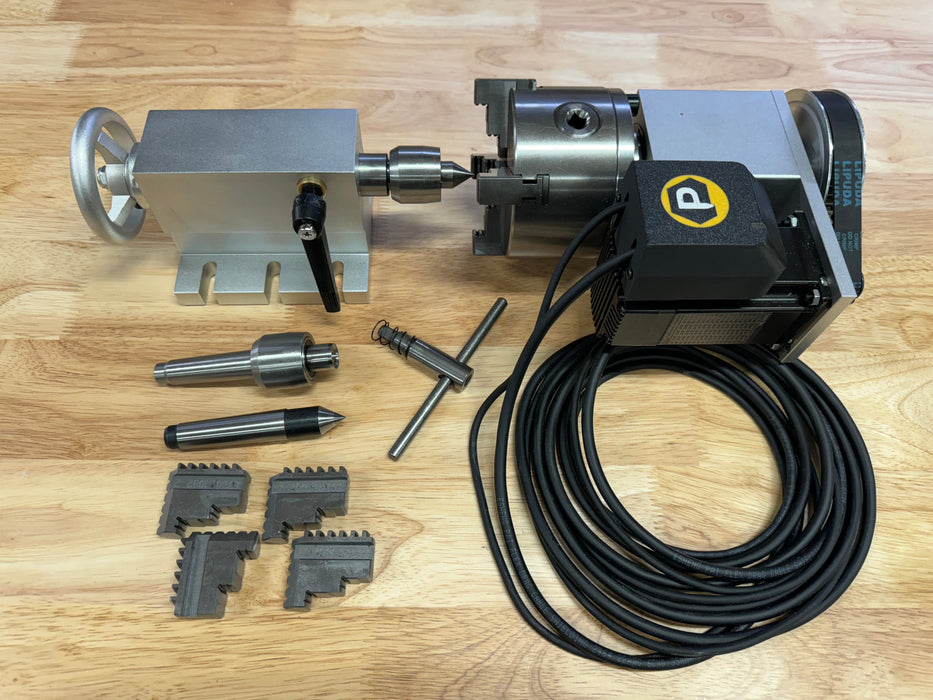

What’s Included
- Rotary headstock assembly
- 100mm four-jaw chuck
- Closed-loop 2Nm stepper motor
- Matching MT2 tailstock
- Standard tailstock center
- Anti-jaw set and chuck tools
Important Notes
Rotary setup requires machine-specific mounting, alignment, workholding, and controller configuration. Additional adapters, cables, power hardware, or mounting fixtures may be required for non-PwnCNC installations. Always verify clearance and secure the rotary assembly before operation.
